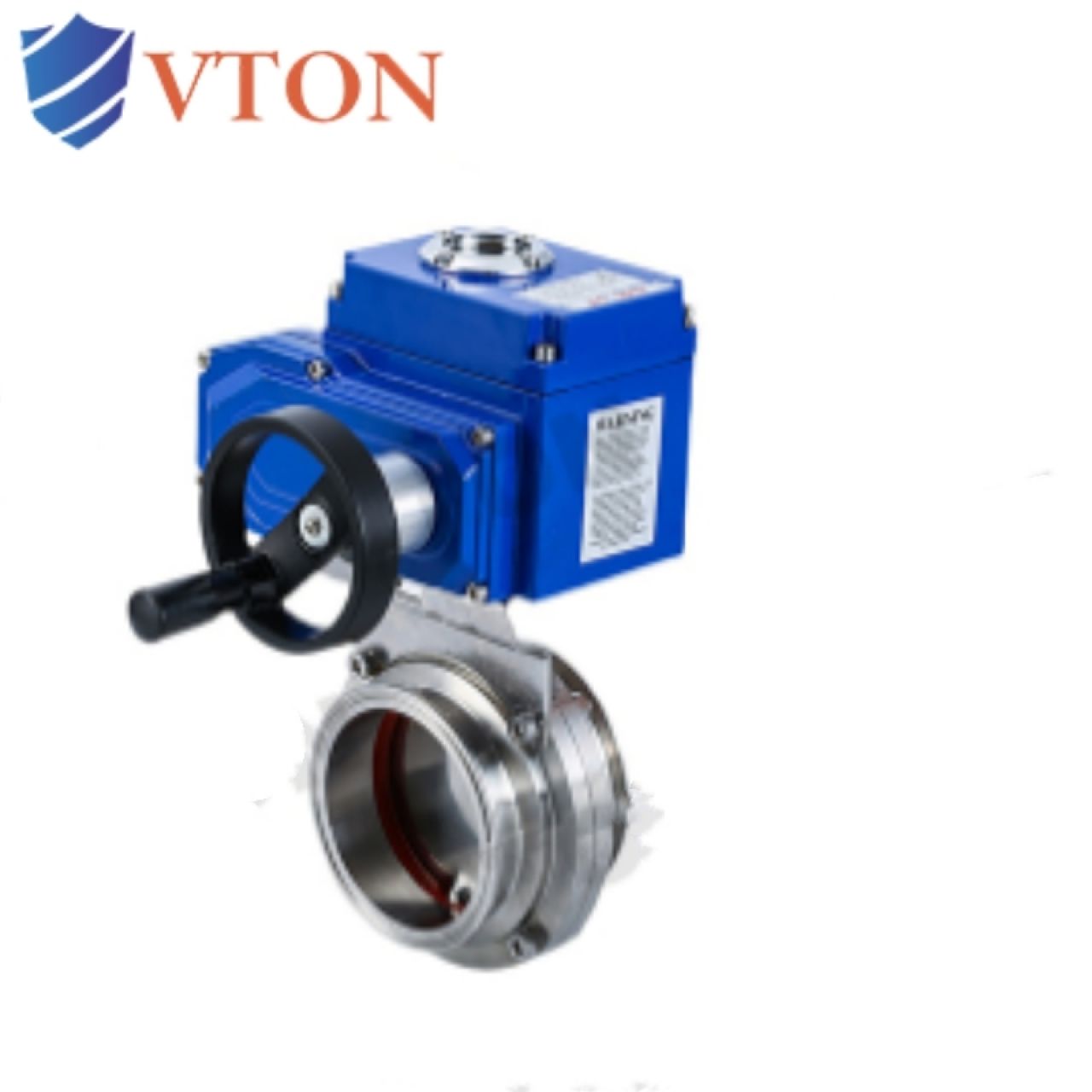

进口电动卫生调节阀

进口电动卫生调节阀

品牌:美国威盾VTON

Brand:VTON

产品系列:调节阀

Product series:Control valve

控制方式:电动，气动，自力式

Controlmethod:Electric,pneumatic,self-operated

压力范围:0-100Mpa

Pressurerange:

口径范围:DN1-1000

Caliber range:

阀体材质:黄铜，铸铁，铸钢，不锈钢304、316等

Body material:Brass,castiron,caststeel,stainless steel 304.316.etc

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:调节性能稳定，精度高，使用寿命长

Main features:S adjustment performance, high precision and long service life

产品介绍

一、进口电动卫生调节阀概述

进口电动卫生调节阀—（美国威盾VTON，Electric sanitary control valve）采用抛光度达到卫生级的不锈钢作为阀体，适用于食品、制药、化妆品、洁净蒸汽、酒类、饮料、生化工业过程控制场合的各种压力、温度、流量等物理量调节。电动卫生调节阀具有结构紧凑、装拆方便、调节精度高等优点，尤其是在压降损失小、流量大、可调范围广、流量精度高，完全符合IEC534-1-1978标准。电动卫生调节阀泄漏量符合ANSIB16.104标准，调节阀配用不同的多弹簧执行机构，输出力大。

The imported electric sanitary control valve (VTON, Electric Sanitary Control Valve) adopts stainless steel with a polishing degree of hygiene grade as the valve body, sui for regulating various physical quantities such as pressure, temperature, flow rate in food, pharmaceuticals, cosmetics, clean steam, alcohol, beverages, and biochemical industrial process control situations. Electric sanitary control valves have the advantages of compact structure, easy installation and disassembly, and high adjustment accuracy, especially in terms of small pressure loss, large flow rate, wide adjus range, and high flow accuracy, fully complying with the IEC534-1978 standard. The leakage rate of the electric sanitary regulating valve complies with the ANSIB16.104 standard, and the regulating valve is equipped with different multi spring actuators, resulting in a large output force.

二、电动卫生调节阀特性优点

角型设计确保阀门自排放，标准电子抛光，光滑表面确保清洁，无介质积存区域，不会产生潜在的污染。快速拆装阀体和阀帽，使阀门打开和维修快捷容易，使过程停机时间缩短。
