进口电动高压焊接球阀

进口电动高压球阀

品牌:美国威盾VTON

Brand:VTON

产品系列:球阀

Product series:Ball valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-100Mpa

Pressurerange:

口径范围:DN1-1000

Caliber range:

阀体材质:黄铜，铸铁，铸钢，不锈钢304、316等

Body material:Brass,castiron,caststeel,stainless steel 304.316.etc

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:密封性能好，耐各种温度和压力，耐腐蚀，使用寿命长

Main features:Good sealing performance, resistant to various temperatures and pressures, corrosion resistant, and long service life

产品介绍

一、进口电动高压焊接球阀产品概述

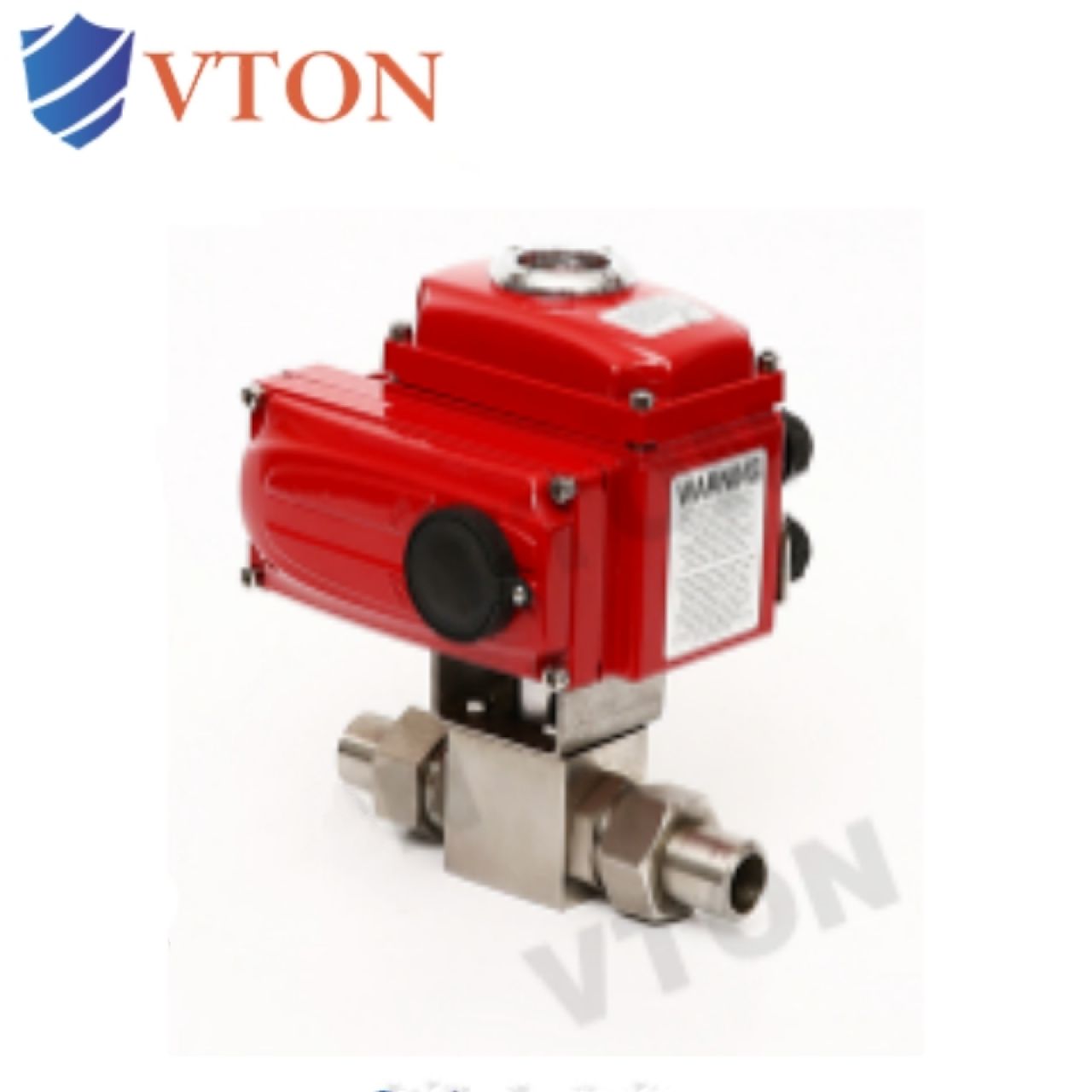

美国威盾VTON电动高压焊接球阀是由焊接式的锻钢高压阀体及电子式角行程电动执行器组成，一般压力为16Mpa-50Mpa，可以用于高压的水，加压天然气，液压油等介质的开关控制。

电动执行器采用一体式结构，输入220V电源即可直接进行开关量调节，亦可内置伺服模块，输入控制信号(4～20mADC或1～5VDC)及单相电源即可控制运转。电动高压焊接球阀主要零部件经过专业厂家锻制，克服了铸钢阀门潜在的缺陷，在最大工作压力下能够保持其结构的抗压均匀性。电动高压焊接球阀适用介质： 水、油、气等非腐蚀性介质和酸碱腐蚀性介质。电动高压焊接球阀广泛应用于化工、石油、天然气、冶金、等行业及含硫化氢介质、杂质多、腐蚀严重的天然气长输管线。

VTON electric high-pressure welding ball valve is composed of a welded forged steel high-pressure valve body and an electronic angular stroke electric actuator, with a general pressure of 16Mpa to 50Mpa. It can be used for switching control of high-pressure water, pressurized natural gas, hydraulic oil and other media.

The electric actuator adopts an integrated structure, and can directly adjust the switch value by inputting a 220V power supply. It can also be equipped with a servo module. The operation can be controlled by inputting control signals (4-20mADC or 1-5VDC) and a single-phase power supply. The main components of electric high-pressure welded ball valves have been forged by professional manufacturers, overcoming the potential defects of cast steel valves and maintaining their structural compressive uniformity under maximum working pressure. Electric high-pressure welding ball valves are sui for non corrosive media such as water, oil, gas, and acid-base corrosive media. Electric high-pressure welded ball valves are widely used in industries such as chemical, petroleum, natural gas, metallurgy, as well as natural gas long-distance pipelines containing hydrogen sulfide media, impurities, and severe corrosion.
