进口电动对夹式球阀

进口电动对夹式球阀

品牌:美国威盾VTON

Brand:VTON

产品系列:球阀

Product series:Ball valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-100Mpa

Pressurerange:

口径范围:DN1-1000

Caliber range:

阀体材质:黄铜，铸铁，铸钢，不锈钢304、316等

Body material:Brass,castiron,caststeel,stainless steel 304.316.etc

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:密封性能好，耐各种温度和压力，耐腐蚀，使用寿命长

Main features:Good sealing performance, resistant to various temperatures and pressures, corrosion resistant, and long service life

产品介绍

一、进口电动对夹式球阀概述

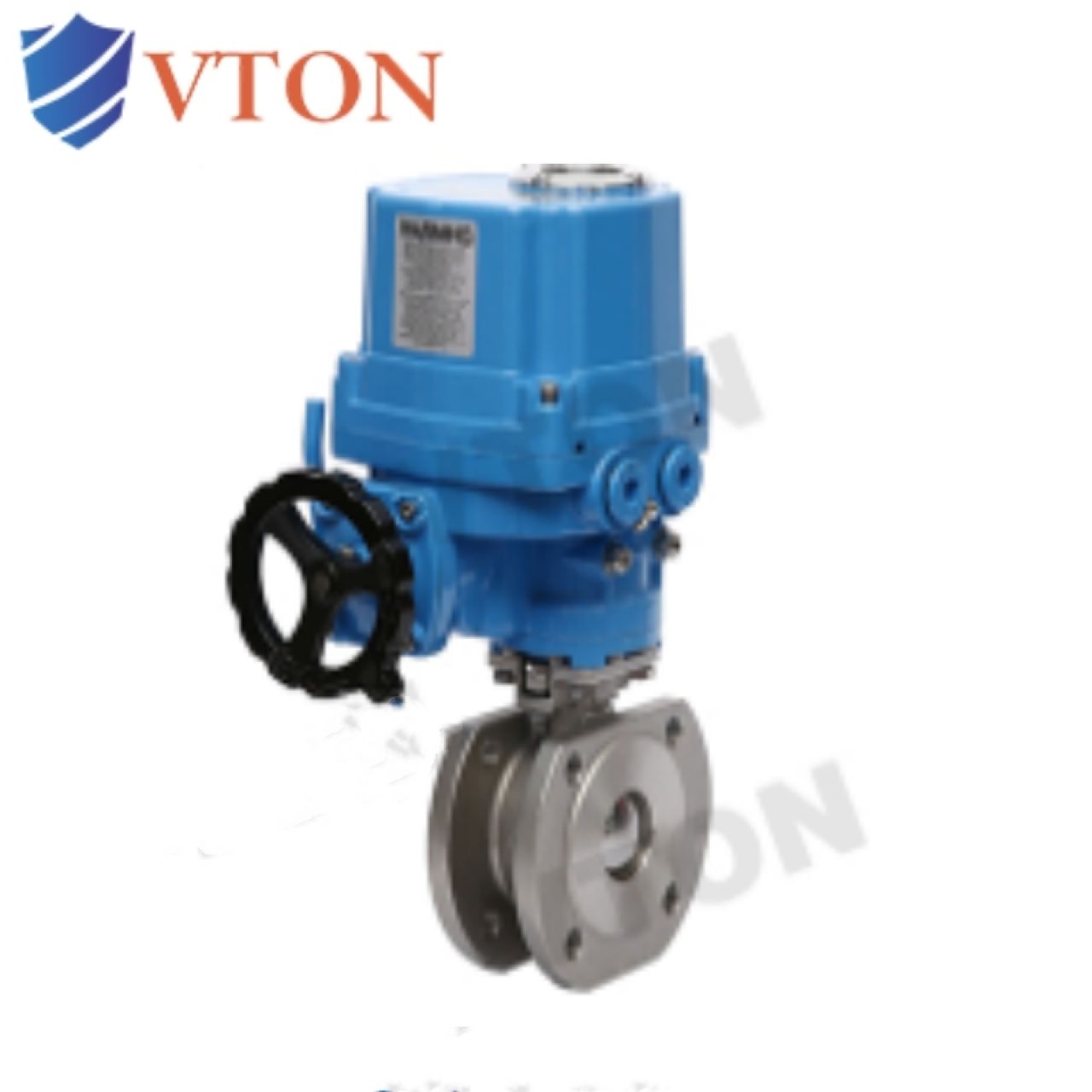

美国威盾VTON电动对夹式超薄型球阀特别适用于短线管道和特定空间的安装使用，具有结构紧凑，长度短、体积小，且阀座与端面法兰距离近，物料滞留少，密封性能优越等特点。电动对夹式球阀与普通球阀相比，是新一代超短法兰距球阀，球芯通道形状为V形、O形，可广泛应用在石油、化工、冶金、电站、轻工等领域，对油、水、气及纸浆或纤维状流体进行自动调节或切断控制。

VTON electric clamp type ultra-thin ball valve is particularly sui for installation and use in short pipelines and specific spaces. It has the characteristics of compact structure, short length, small volume, close distance between the valve seat and the end flange, less material retention, and superior sealing performance. Compared with ordinary ball valves, electric clamp type ball valves are a new generation of ultra short flange pitch ball valves. The core channel shape of the ball is V-shaped or O-shaped, which can be widely used in fields such as petroleum, chemical industry, metallurgy, power plants, light industry, etc. It can automatically adjust or cut off control oil, water, gas, pulp or fibrous fluids.

二、进口电动对夹式球阀特点

电动对夹式球阀具有结构长度短、重量轻、安装方便、节省材料等显著优点，适用于安装位置比较短的场合，维修方便，阀门设计易拆卸，在阀门一端有螺旋阀盖，此阀盖控制阀座与球芯密封及开关松紧度。

Electric clamp type ball valves have significant advantages such as short structural length, light weight, easy installation, and material saving. They are sui for situations with short installation positions, convenient maintenance, and easy disassembly of valve design. There is a spiral valve cover at one end of the valve, which controls the sealing of the valve seat and ball core, as well as the tightness of the switch.
