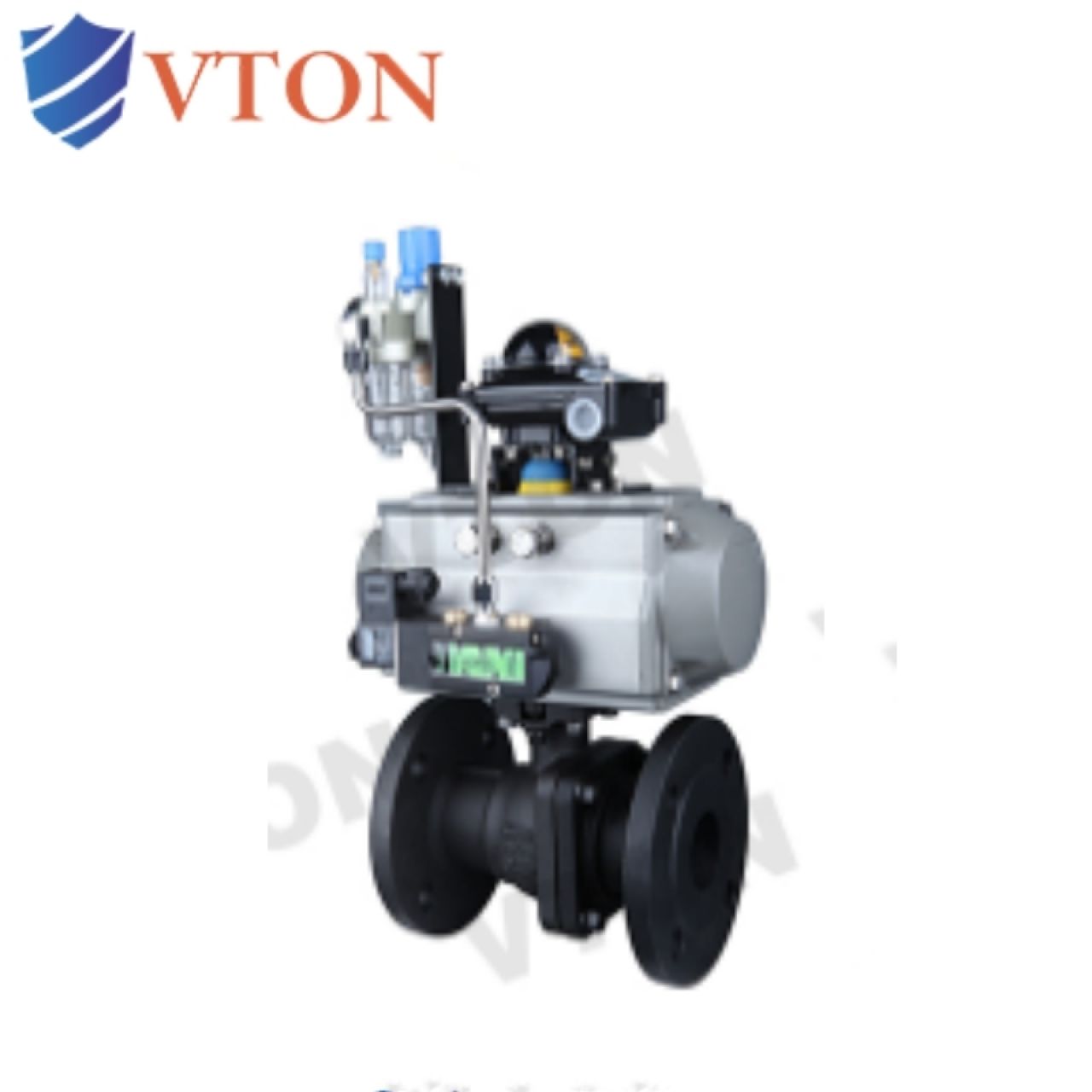

进口气动V型球阀

进口气动V型球阀

品牌:美国威盾VTON

Brand:VTON

产品系列:球阀

Product series:Ball valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-100Mpa

Pressurerange:

口径范围:DN1-1000

Caliber range:

阀体材质:黄铜，铸铁，铸钢，不锈钢304、316等

Body material:Brass,castiron,caststeel,stainless steel 304.316.etc

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:密封性能好，耐各种温度和压力，耐腐蚀，使用寿命长

Main features:Good sealing performance, resistant to various temperatures and pressures, corrosion resistant, and long service life

产品介绍

一、进口气动V型球阀产品概述

美国威盾VTON进口气动V型球阀是一种球芯通道设计成V型状开口的阀门，具有精确的流量特性和控制功能。通过0-90度的旋转动作，来达到流量的调节。阀座与球面之间无间隙摩擦，具有优良的剪切力和自洁能力，尤其适用于带有纤维或带有微小颗粒的流体介质。

VTON pneumatic V-shaped ball valve is a valve with a V-shaped opening in the core channel design, which has precise flow characteristics and control functions. Adjust the flow rate through a 0-90 degree rotation motion. There is no clearance friction between the valve seat and the spherical surface, which has excellent shear force and self-cleaning ability, especially sui for fluid media with fibers or small particles.

二、进口气动V型球阀特点

阀座与球面之间无间隙摩擦，具有优良的剪切力和自洁能力

具有精确的流量特性和控制功能。

高平台设计符合ISO5211标准，可以ISO5211标准执行器，直接连接。互换性好

结构紧密，尺寸精度高。外观精美。

There is no clearance friction between the valve seat and the spherical surface, which has excellent shear force and self-cleaning ability

Has precise flow characteristics and control functions.

The high platform design meets the ISO5211 standard and can be directly connected to ISO5211 standard actuators. Good interchangeability

Compact structure with high dimensional accuracy. Exquisite appearance.
