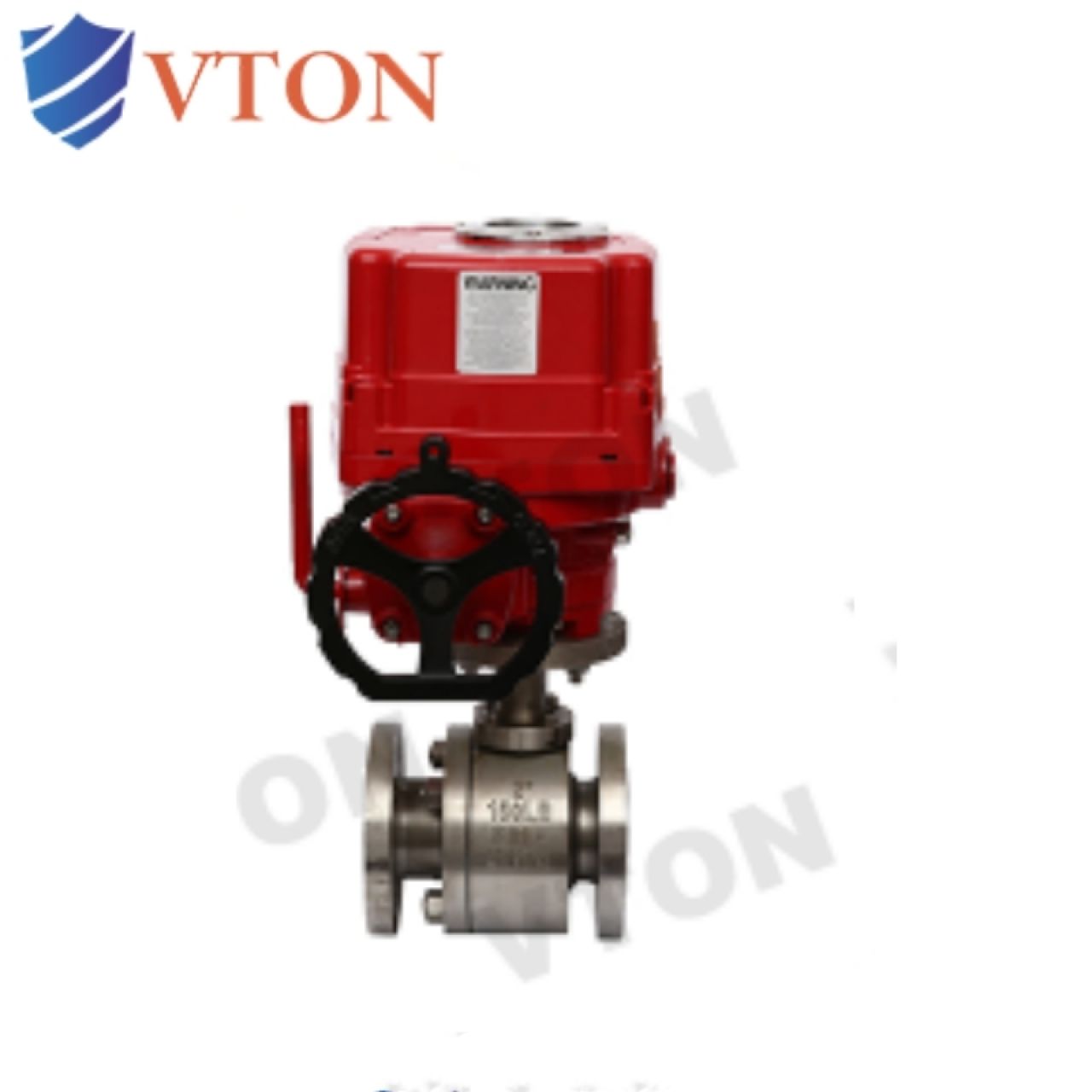

进口电动陶瓷球阀

进口电动陶瓷球阀

品牌:美国威盾VTON

Brand:VTON

产品系列:球阀

Product series:Ball valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-100Mpa

Pressurerange:

口径范围:DN1-1000

Caliber range:

阀体材质:黄铜，铸铁，铸钢，不锈钢304、316等

Body material:Brass,castiron,caststeel,stainless steel 304.316.etc

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:密封性能好，耐各种温度和压力，耐腐蚀，使用寿命长

Main features:Good sealing performance, resistant to various temperatures and pressures, corrosion resistant, and long service life

产品介绍

一、进口电动陶瓷球阀概述

美国威盾VTON电动陶瓷球阀具有耐腐蚀、耐高温、耐磨损及耐冲蚀等特点。应用于石化、冶金、造纸、电站、炼油等行业的酸碱盐气体、液体、高温蒸汽和泥浆输送系统中。是强腐蚀场合下钛金属阀、蒙乃尔阀的替代产品。氧化锆陶瓷球阀具有经济性高和使用长的优点。

其驱动方式有手动、气动、气动一弹簧复位、电动等。并可按用户的要求设计陶瓷阀门。适用于酸、碱、盐类液体、气体介质环境，硬密封球阀适用于带颗粒、纤维状介质环境。

VTON electric ceramic ball valves have characteristics such as corrosion resistance, high temperature resistance, wear resistance, and erosion resistance. Applied in acid, alkali, salt gas, liquid, high-temperature steam, and mud conveying systems in industries such as petrochemicals, metallurgy, papermaking, power plants, and refining. It is a substitute product for titanium metal valves and Monel valves in highly corrosive environments. Zirconia ceramic ball valves have the advantages of high economy and long service life.

Its driving methods include manual, pneumatic, pneumatic spring return, electric, etc. And ceramic valves can be designed according to user requirements. Sui for acidic, alkaline, saline liquids, and gas media environments, hard sealed ball valves are sui for environments with granular and fibrous media.

二、进口电动陶瓷球阀特点

1、与介质接触的部分均为结构陶瓷材料,其化学稳定性及硬度高。本阀具有耐磨损、耐腐蚀、耐冲蚀性能，且隔热性好、热膨胀小。

2、球体采用研磨设备及工艺，球圆度高,与阀座对研后,利用Zr02陶瓷的自滑润性,可取得好的密封性能。

3、改变了金属硬密封球阀泄露、扭矩大、密封面不耐腐蚀的缺点。

4、陶瓷良好的耐磨性,让本阀使用长,是钛合金阀和蒙乃尔阀。

5、用于高硬度的颗粒介质，或有软颗粒但又有腐蚀的介质中。

1. The parts in contact with the medium are all structural ceramic materials, which have high chemical stability and hardness. This valve has wear resistance, corrosion resistance, and erosion resistance, as well as good insulation and small thermal expansion.

2. The ball adopts grinding equipment and technology, with high roundness. After grinding against the valve seat, good sealing performance can be achieved by utilizing the self-lubricating property of Zr02 ceramic.

3. Changed the drawbacks of metal hard sealed ball valves such as leakage, high torque, and poor corrosion resistance of sealing surfaces.

4. The excellent wear resistance of ceramics makes this valve durable, especially for titanium alloy valves and Monel valves.

5. Used in high hardness granular media or media with soft particles but corrosive properties.

三、进口电动陶瓷球阀应用领域

火力发电厂、钢铁、石油、化工、造纸、生物工程、等行业。适用于锅炉蒸气、石灰浆液、含颗粒海水输送、高硬度颗粒、含软颗粒又带腐蚀性介质、粉末、烟气脱硫、排灰、排渣、给水处理。依用途更换材料,可用于不同温度和介质中。陶瓷球阀具有耐腐蚀、耐高温、耐磨损及耐冲蚀等特点。应用于石化、冶金、造纸、电站、炼油等行业的酸碱盐气体、液体、高温蒸汽和泥浆输送系统中。是强腐蚀场合下钛金属阀、蒙乃尔阀的替代产品。氧化锆陶瓷球阀具有经济性高和使用长的优点。其驱动方式有手动、气动、气动一弹簧复位、电动等。并可按用户的要求设计陶瓷阀门。适用于酸、碱、盐类液体、气体介质环境，硬密封阀适用于带颗粒、纤维状介质环境。

Industries such as thermal power plants, steel, petroleum, chemical, papermaking, biotechnology, etc. Sui for conveying boiler steam, lime slurry, seawater containing particles, high hardness particles, soft particles with corrosive media, powder, flue gas desulfurization, ash discharge, slag discharge, and water treatment. Changing materials according to their intended use can be used in different temperatures and media. Ceramic ball valves have characteristics such as corrosion resistance, high temperature resistance, wear resistance, and erosion resistance. Applied in acid, alkali, salt gas, liquid, high-temperature steam, and mud conveying systems in industries such as petrochemicals, metallurgy, papermaking, power plants, and refining. It is a substitute product for titanium metal valves and Monel valves in highly corrosive environments. Zirconia ceramic ball valves have the advantages of high economy and long service life. Its driving methods include manual, pneumatic, pneumatic spring return, electric, etc. And ceramic valves can be designed according to user requirements. Sui for acidic, alkaline, saline liquids, and gas media environments, hard sealed valves are sui for environments with particles and fibrous media.
