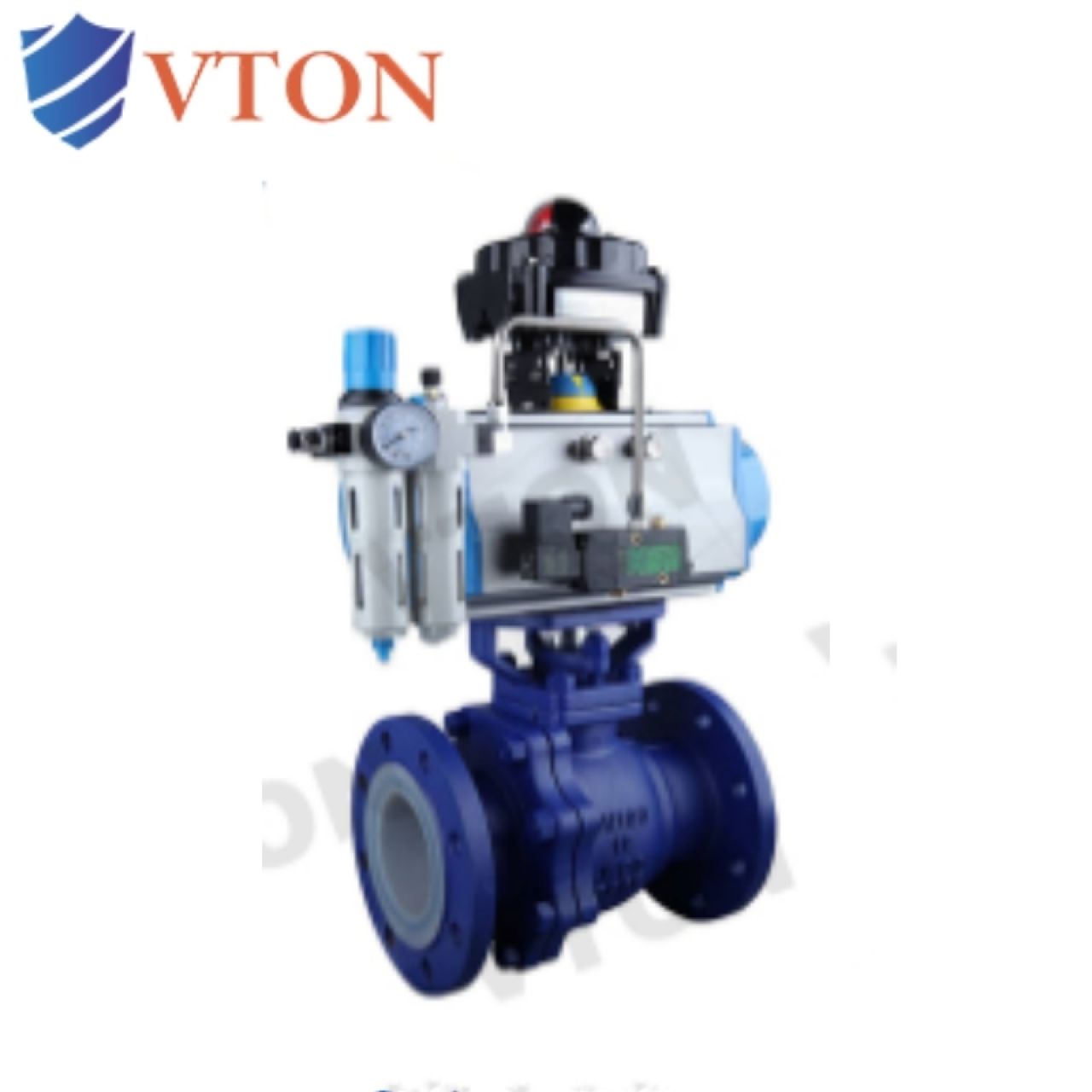

进口碳钢衬氟球阀

进口碳钢衬氟球阀

品牌:美国威盾VTON

Brand:VTON

产品系列:球阀

Product series:Ball valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-100Mpa

Pressurerange:

口径范围:DN1-1000

Caliber range:

阀体材质:黄铜，铸铁，铸钢，不锈钢304、316等

Body material:Brass,castiron,caststeel,stainless steel 304.316.etc

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:密封性能好，耐各种温度和压力，耐腐蚀，使用寿命长

Main features:Good sealing performance, resistant to various temperatures and pressures, corrosion resistant, and long service life

产品介绍

一、进口碳钢衬氟球阀概述

品牌：美国威盾VTON

进口碳钢衬氟球阀内腔及球体均采用高压注塑工艺衬有耐腐蚀、耐老化的聚全氟乙丙稀（F46），故具有可靠的耐腐蚀性和密封性。广泛用于化工、石油、冶金、医药等工业部门，实现对生产过程中酸、碱等强腐蚀介质的调节或切断，在水处理过程控制中使用效果最明显。

The inner cavity and sphere of carbon steel lined fluorine ball valve are lined with corrosion-resistant and aging resistant polytetrafluoroethylene propylene (F46) using high-pressure injection molding technology, which has reliable corrosion resistance and sealing performance. Widely used in industrial sectors such as chemical, petroleum, metallurgy, medicine, etc., it achieves the regulation or cutting off of strong corrosive media such as acid and alkali in the production process, and has the most obvious effect in water treatment process control.

二、进口碳钢衬氟球阀产品特点

1、采用FEP衬里层的球阀,具有极高的化学稳定性,可以适用除“熔融碱金属和元素氟”，以外其它任何强腐蚀性质

2、采用全通径、浮动球结构，阀门可在整个压力范围内进行无泄漏关闭，更便于管路系统的通球扫线和管路维护

3、启闭件球件与阀杆铸（锻）为一体，杜绝了由于压力变化引起阀杆冲出承压件内的可能性，从根本上保证了工程中的使用安全性

4、结构紧凑合理，阀体内腔空间最小，减小了介质滞留，另外，特殊的模压工艺，使密封面致密度良好，加之人字环形PTFE填料组合，使阀门达到零泄漏

5、两片式、三片式结构可适应各种不同要求的管路系统和工况条件，其中三片球阀允许主阀体与两侧阀体分离，可实现在线快速更换、维修

1. Ball valves with FEP lining layer have extremely high chemical stability and can be used for any strong corrosive properties except for molten alkali metals and elemental fluorine

2. Adopting a full bore, floating ball structure, the valve can be closed without leakage throughout the entire pressure range, making it more convenient for ball cleaning and pipeline maintenance of the pipeline system

3. The ball parts of the opening and closing parts are integrated with the valve stem casting (forging), which eliminates the possibility of the valve stem punching out of the pressure bearing parts due to pressure changes, fundamentally ensuring the safety of use in engineering

4. The structure is compact and reasonable, with the smallest internal cavity space of the valve body, reducing medium retention. In addition, the special molding process makes the sealing surface have good density, and the combination of herringbone ring PTFE packing makes the valve achieve zero leakage

5. The two piece and three piece structures can adapt to various pipeline systems and working conditions with different requirements. Among them, the three piece ball valve allows the main valve body to be separated from the two side valve bodies, and can achieve online rapid replacement and maintenance.
