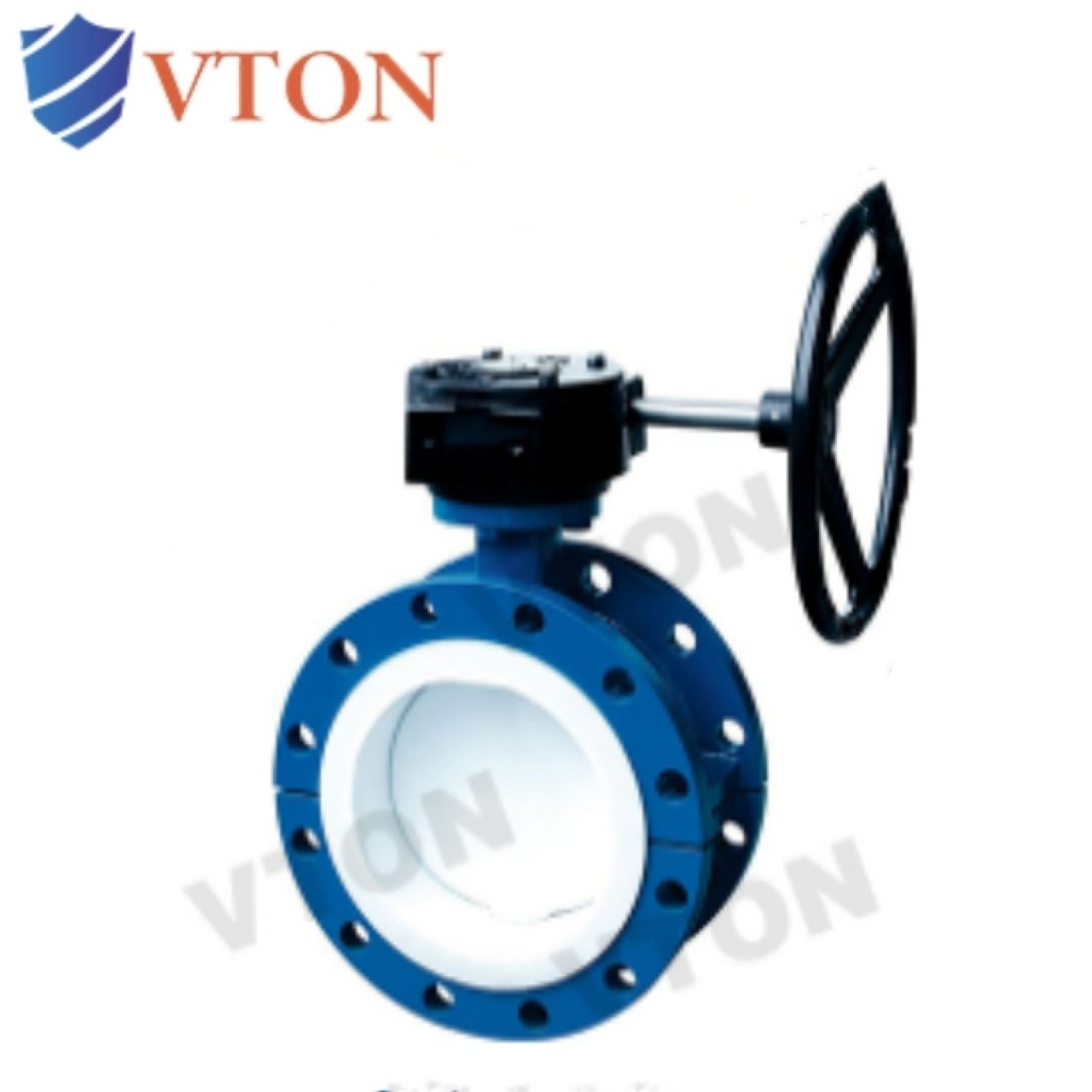

进口法兰衬氟蝶阀

进口法兰衬氟蝶阀

品牌:美国威盾VTON

Brand:VTON

产品系列:蝶阀

Product series:Butterfly valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-6.4Mpa

Pressurerange:

口径范围:DN32-2000

Caliber range:

阀体材质:球墨铸铁，铸钢，不锈钢304、316等

Body material:Cast steel,stainless steel 304,316, etc

软密封，硬密封(双偏心，三偏心);衬胶，衬氟

Sealed form:Soft seal, hard seal (double eccentric, triple eccentric); rubber lined, fluorine lined

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:流通能力大，密封性能好，启闭迅速

Main features:Large circulation capacity, good sealing performance, rapid opening and closing

产品介绍

一、进口法兰衬氟蝶阀产品概述

进口法兰衬氟蝶阀（美国威盾VTON），Fluorine flange butterfly valve，衬四氟法兰蝶阀，衬氟法兰式蝶阀，衬氟密封蝶阀，是指采用法兰式对接结构，阀体、阀座与阀芯内衬四氟一体化，阀门工作时，只有阀体内衬与衬塑蝶板与介质接触，阀门可承受衬里材料介绍的介质腐蚀，采用四极密封结构并在密封面处配以耐温抗老化的SI橡胶的弹性衬垫，完全达到介质的零泄漏，具有严密的密封性能，超长的使用寿命。

美国威盾VTON法兰衬氟蝶阀适用于各种不同类型工业管道中液体和气体（包括蒸汽）的输送，特别是具有严重腐蚀性介质的使用场合，如：硫酸、氢氟酸、磷酸、氯气、强碱、王水等具有强腐蚀性的介质。

Flange fluorine lined butterfly valve (VTON), Fluorine flange butterfly valve, Fluorine flange lined butterfly valve, Fluorine flange lined butterfly valve, Fluorine sealing butterfly valve, refers to the use of flange butt t structure, the valve body, valve seat and valve core lining PTFE integration, when the valve is working, only the valve body lining and plastic lining butterfly plate are in contact with the media, the valve can withstand the media corrosion introduced by the lining materials. The four pole sealing structure is adopted, and the sealing surface is equipped with temperature resistant and anti-aging SI rubber elastic gasket, which fully achieves zero leakage of the media, has tight sealing performance, and has an ultra long service life.

VTON flange fluorine lined butterfly valves are sui for the transportation of liquids and gases (including steam) in various types of industrial pipelines, especially in applications with severely corrosive media, such as sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine gas, strong alkali, aqua regia, and other highly corrosive media.
