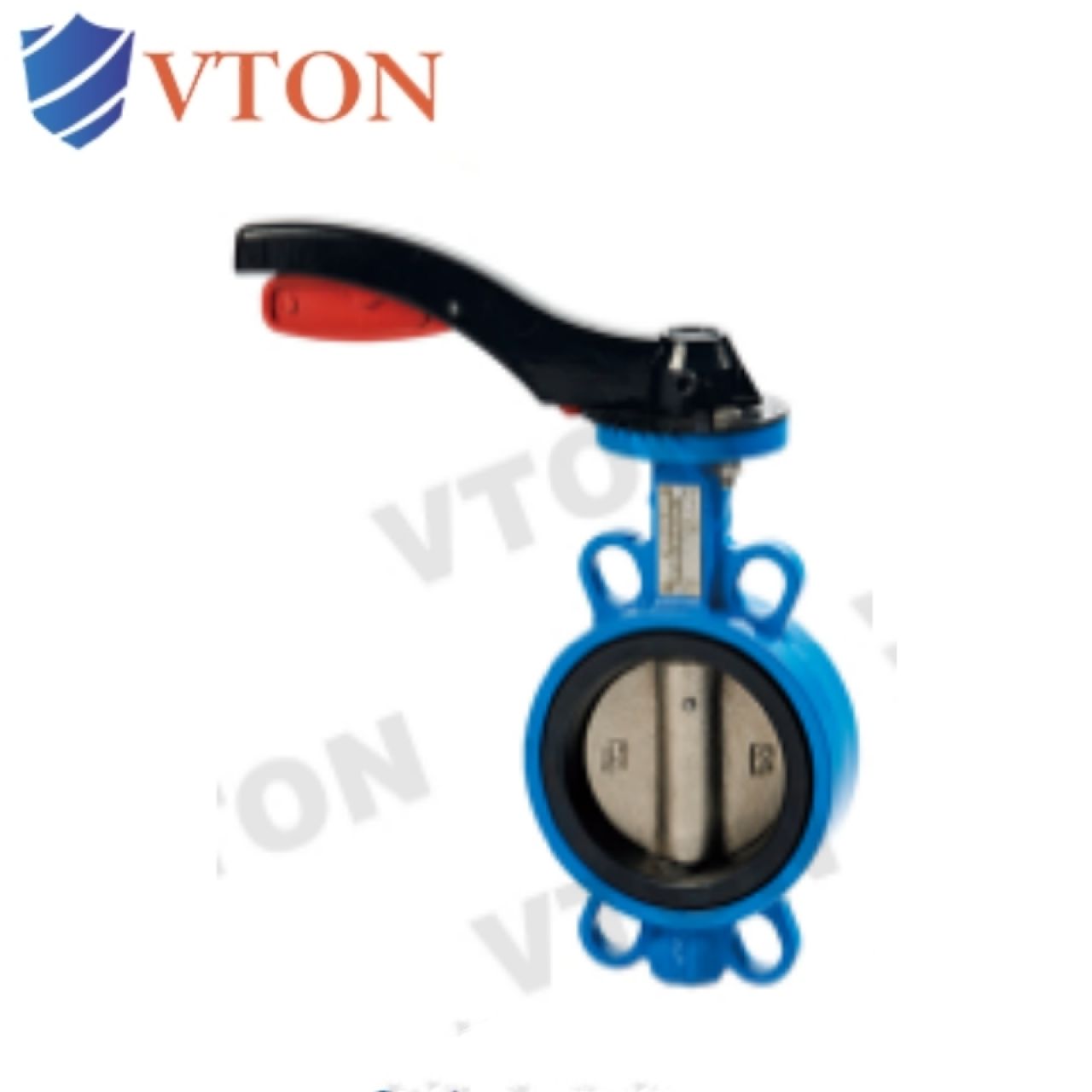

进口对夹式软密封蝶阀

进口对夹式软密封蝶阀

品牌:美国威盾VTON

Brand:VTON

产品系列:蝶阀

Product series:Butterfly valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-6.4Mpa

Pressurerange:

口径范围:DN32-2000

Caliber range:

阀体材质:球墨铸铁，铸钢，不锈钢304、316等

Body material:Cast steel,stainless steel 304,316, etc

软密封，硬密封(双偏心，三偏心);衬胶，衬氟

Sealed form:Soft seal, hard seal (double eccentric, triple eccentric); rubber lined, fluorine lined

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:流通能力大，密封性能好，启闭迅速

Main features:Large circulation capacity, good sealing performance, rapid opening and closing

产品介绍

一、进口对夹式软密封蝶阀产品概述

进口对夹式软密封蝶阀（美国威盾VTON），Wafer type soft sealing butterfly valve，也叫对夹中线蝶阀，对夹衬胶蝶阀，是由铸铁、球铁、铸钢、不锈钢的阀体，橡胶密封组成的蝶阀。对夹式软密封蝶阀适用于温度≤80～120℃如食品、医药、化工、石油、电力、轻纺、造纸等给排水、气体管道上作调节流量和截流介质的作用。

Wafer type soft sealing butterfly valve (VTON), also known as wafer type soft sealing butterfly valve or wafer lined rubber butterfly valve, is a butterfly valve composed of cast iron, ductile iron, cast steel, stainless steel valve body and rubber seal. The clamp type soft seal butterfly valve is sui for regulating the flow rate and intercepting the flow medium on water supply and drainage, gas pipelines, such as food, medicine, chemical, petroleum, electricity, light textile, papermaking, etc., with a temperature of ≤ 80-120 ℃.

二、进口对夹式软密封蝶阀特点
1、对夹式软密封蝶阀设计新颖、合理、结构独特，重量轻，启闭迅速。
2、对夹式软密封蝶阀操力矩小，操作方便，省力灵巧。
3、对夹式软密封蝶阀可以任何位置安装，维修方便。
4、对夹式软密封蝶阀密封件可以更换，密封性能可靠达到双向密封零泄漏。
5、对夹式软密封蝶阀密封材料耐老化、耐弱腐蚀，使用寿命长等特点。

1. The design of the clamp type soft seal butterfly valve is novel, reasonable, and has a unique structure. It is lightweight and can open and close quickly.

2. The clamp type soft seal butterfly valve has a small operating torque, convenient operation, and is labor-saving and agile.

3. The clamp type soft seal butterfly valve can be installed in any position, making maintenance convenient.

4. The sealing components of the clamp type soft seal butterfly valve can be replaced, and the sealing performance is reliable, achieving zero leakage in both directions.

5. The sealing material of the clamp type soft seal butterfly valve is characterized by aging resistance, weak corrosion resistance, and long service life.
