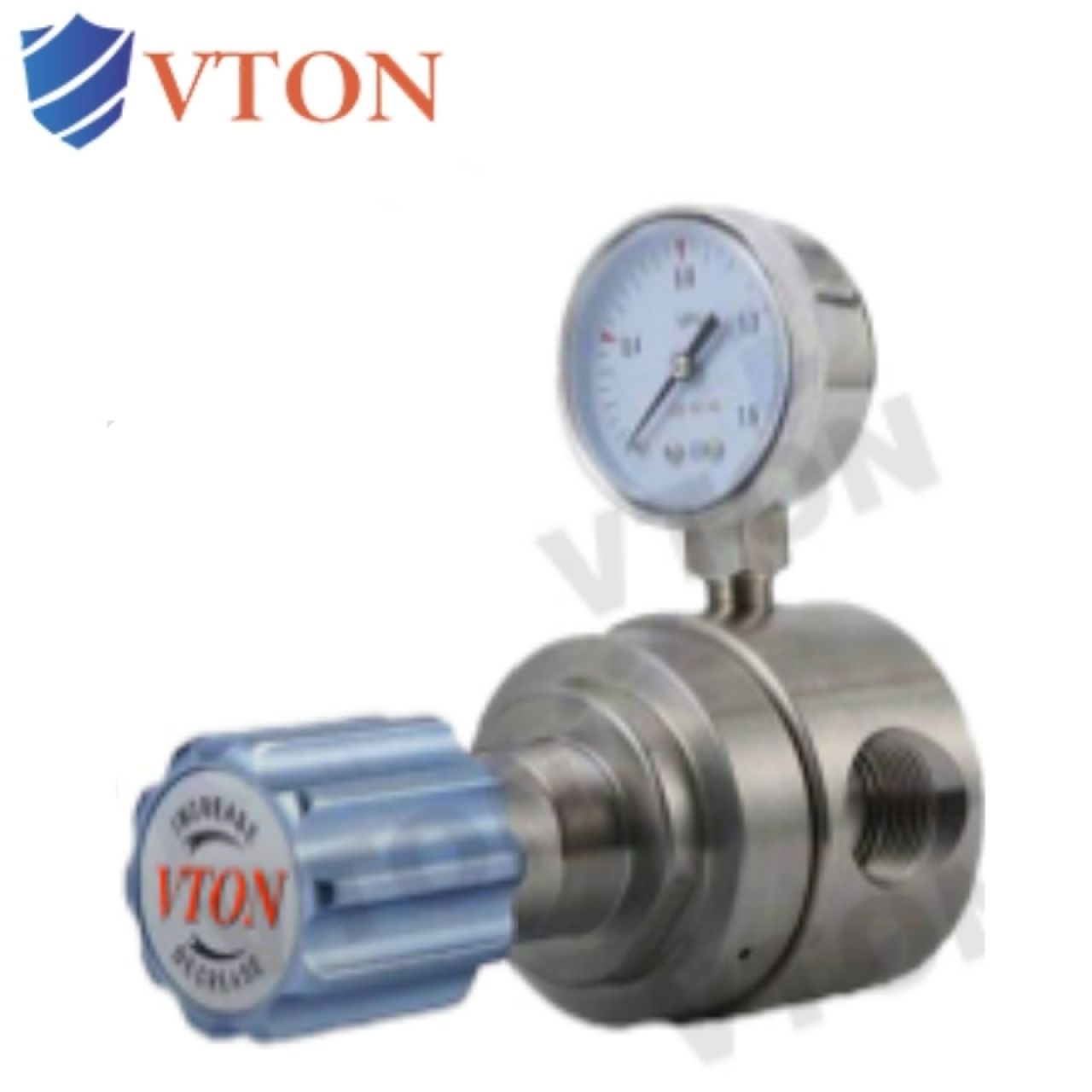

进口小口径气体减压阀

进口小口径气体减压阀

品牌:美国威盾VTON

Brand:VTON

产品系列:减压阀

Product series:Pressure reducing valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-100Mpa

Pressurerange:

口径范围:DN3-1000

Caliber range:

减压范围:高压，常压，低压，微压

Repulating range:High pressure, normal pressure, low pressure, micro pressure

阀体材质:铸钢，不锈钢304、316等

Body material:Cast steel,stainless steel304.316.etc

软密封，硬密封(双偏心，三偏心);衬胶，衬氟

Sealed form:Soft seal, hard seal (double eccentric, triple eccentric); rubber lined, fluorine lined

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:减压稳压，控制压力精度高，稳定性好，适用各种压力调节

Main features:Pressurereduction and pressure stabilization,high pressure control accuracy and good stabiity,sui for various pressure adjustments

产品介绍

一、进口小口径气体减压阀概述

进口小口径气体减压阀，小口径气体减压器，Small-diameter gas reducing valve，就是是口径为G1/4,1/2,5/8等小规格的气体减压阀，将气体钢瓶中的高压气体减为实验及工况所需的低压气体压力的减压阀。采用活塞式减压结构，输出压力稳定，主要用于石油化工、化纤、照明电器、热处理、冶金、玻璃、食品、医药、电子、国防航天、航空等主导领域的氮气钢瓶，氧气钢瓶，氦气钢瓶，氢气钢瓶，氩气钢瓶，乙炔钢瓶的出口减压。

各种气体一般都是贮存在专用的高压气体钢瓶中，使用时通过减压阀使气体压力降至实验所需范围，再经过其它控制阀门细调，使气体输入使用系统。由于气瓶内压力较高，而气焊和气割和使用点所需的压力却较小，所以需要用减压器来把储存在气瓶内的较高压力的气体降为低压气体，并应保证所需的工作压力自始至终保持稳定状态。进口小口径气体减压阀是将高压气体降为低压气体、并保持输出气体的压力和流量稳定不变的调节装置。

A small diameter gas reducing valve, also known as a small diameter gas reducing valve, is a gas reducing valve with a diameter of G1/4, 1/2, 5/8, and other small specifications. It reduces the high-pressure gas in a gas cylinder to the low-pressure gas pressure required for experiments and operating conditions. Adopting a piston type pressure reducing structure, with s output pressure, it is mainly used for outlet pressure reduction of nitrogen steel cylinders, oxygen steel cylinders, helium steel cylinders, hydrogen steel cylinders, argon steel cylinders, acetylene steel cylinders in leading fields such as petrochemicals, chemical fibers, lighting appliances, heat treatment, metallurgy, glass, food, medicine, electronics, national defense aerospace, aviation, etc.

Various gases are generally stored in specialized high-pressure gas cylinders. When in use, the gas pressure is reduced to the required range through a pressure reducing valve, and then finely adjusted through other control valves to input the gas the usage system. Due to the high pressure inside the gas cylinder, while the pressure required for gas welding, cutting, and usage points is relatively low, a pressure reducer is needed to reduce the high pressure gas stored in the cylinder to low pressure gas, and the required working pressure should be maintained in a s state from beginning to end. The imported small diameter gas pressure reducing valve is a regulating device that reduces high-pressure gas to low-pressure gas and maintains s pressure and flow rate of the output gas.
