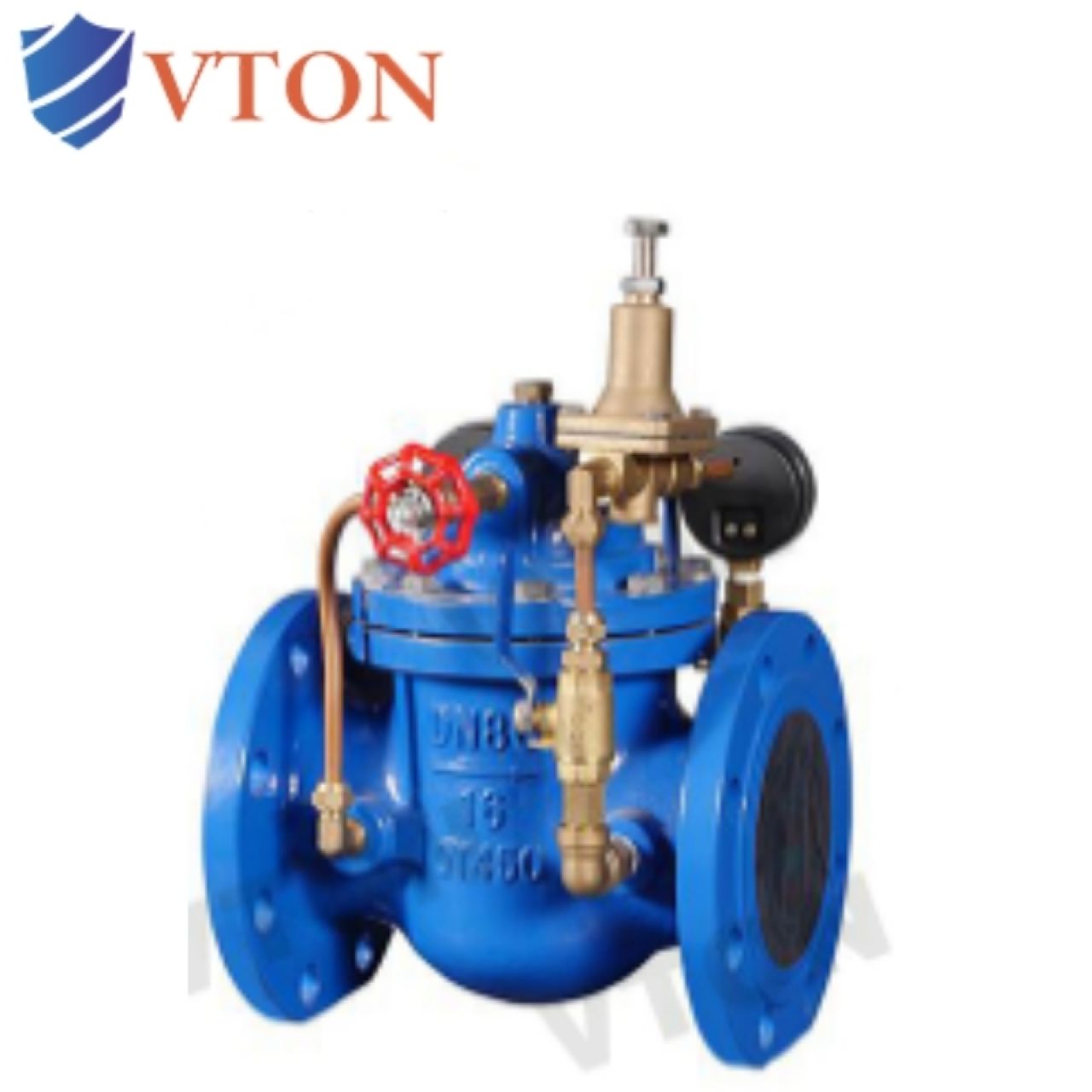

进口水用减压稳压阀

进口水用减压稳压阀

品牌:美国威盾VTON

Brand:VTON

产品系列:减压阀

Product series:Pressure reducing valve

控制方式:电动，气动，自动

Controlmethod:Manual,electric,pneumatic

压力范围:0-100Mpa

Pressurerange:

口径范围:DN3-1000

Caliber range:

减压范围:高压，常压，低压，微压

Repulating range:High pressure, normal pressure, low pressure, micro pressure

阀体材质:铸钢，不锈钢304、316等

Body material:Cast steel,stainless steel304.316.etc

软密封，硬密封(双偏心，三偏心);衬胶，衬氟

Sealed form:Soft seal, hard seal (double eccentric, triple eccentric); rubber lined, fluorine lined

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:减压稳压，控制压力精度高，稳定性好，适用各种压力调节

Main features:Pressurereduction and pressure stabilization,high pressure control accuracy and good stabiity,sui for various pressure adjustments

产品介绍

一、进口水用减压稳压阀概述

进口水用减压稳压阀（威盾VTON），Water pressure regulator valve也叫水用压力控制阀，能控制主阀的固定出口压力，不因主阀上游进口压力变化而改变，亦不因主阀下游出口用水量变化而改变其出口压力。

美国威盾VTON进口水用减压稳压阀产品特征：

1、采用直接作用活塞式结构，内部结构非常简单，无卡阻，性能可靠，经久耐用。

2、耐脏防水垢，不需过滤器，不需旁通管，配管极其简单，能节省大量空间和配管成本。

3、出口压力精密可调1~5.5bar，在一般场合下，可以认为出口压力不管进口压力的影响。

4、极佳的水力特性，压力损失小，减压比可达10：1以上。

A water pressure regulator valve (VTON), also known as a water pressure control valve, can control the fixed outlet pressure of the main valve, which does not change due to changes in upstream inlet pressure or downstream outlet water consumption of the main valve.

VTON imported water pressure reducing and stabilizing valve product features:

1. Adopting a direct acting piston structure, the internal structure is very simple, without jamming, with reliable performance and durability.

2. It is resistant to dirt and waterproof scale, does not require filters or bypass pipes, and piping is extremely simple, which can save a lot of space and piping costs.

3. The outlet pressure can be precisely adjusted to 1-5.5bar. In general, it can be considered that the outlet pressure does not affect the inlet pressure.

4. Excellent hydraulic characteristics, low pressure loss, and a pressure reduction ratio of over 10:1.
