- 品牌：美国威盾
进口对夹式双瓣止回阀
品牌:美国威盾VTON
Brand:VTON
产品系列:止回阀
Product series:Check valve
压力范围:0-100Mpa
Pressurerange:
口径范围:DN3-1000
Caliber range:
减压范围:高压，常压，低压，微压
Repulating range:High pressure, normal pressure, low pressure, micro pressure
阀体材质:铸钢，不锈钢304、316等
Body material:Cast steel,stainless steel304.316.etc
结构形式:旋启式，升降升，单瓣对夹式，蝶形对夹式等
Structure type:Swing type, lifting type, single-flap clamping type, butterfly clamping type, etc
使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体
Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids
主要特征:防止倒流，反向密封性能好，关闭静音，满足各种压力，温度，介质
Main features:Prevent backflow, good reverse sealing performance, silent closing, sui for various pressures, temperatures, and media
产品介绍
一、进口对夹式双瓣止回阀概述
进口对夹式双瓣止回阀，也称为蝶式止回阀，对夹式双瓣止回阀用于纯净管路及工业、环保、水处理、高层建筑给排水管路，防止介质逆向流动之用。

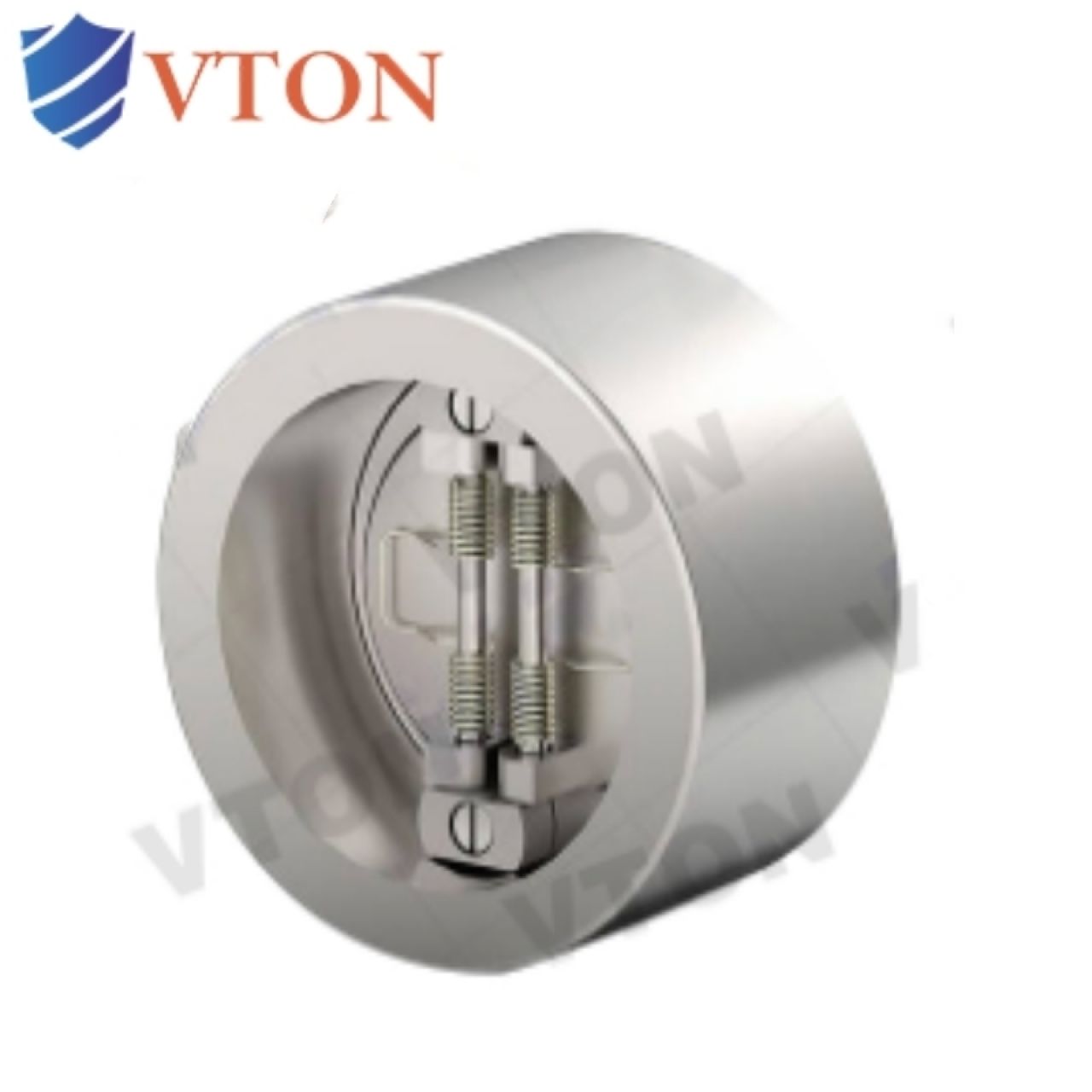

美国威盾VTON对夹式双瓣止回阀采用对夹式，蝶板为两个半圆，且采用弹簧强制复位，密封面可为本体堆焊耐磨材料或衬橡胶，使用范围广，密封可靠。
Double disc check valves, also known as butterfly check valves, are used in pure pipelines and industrial, environmental, water treatment, and high-rise building drainage pipelines to prevent reverse flow of media.
The Weidun VTON double disc check valve in the United States adopts a clamp type, with two semi-circular butterfly plates and a forced spring reset. The sealing surface can be made of wear-resistant material or lined with rubber, which has a wide range of use and reliable sealing.
