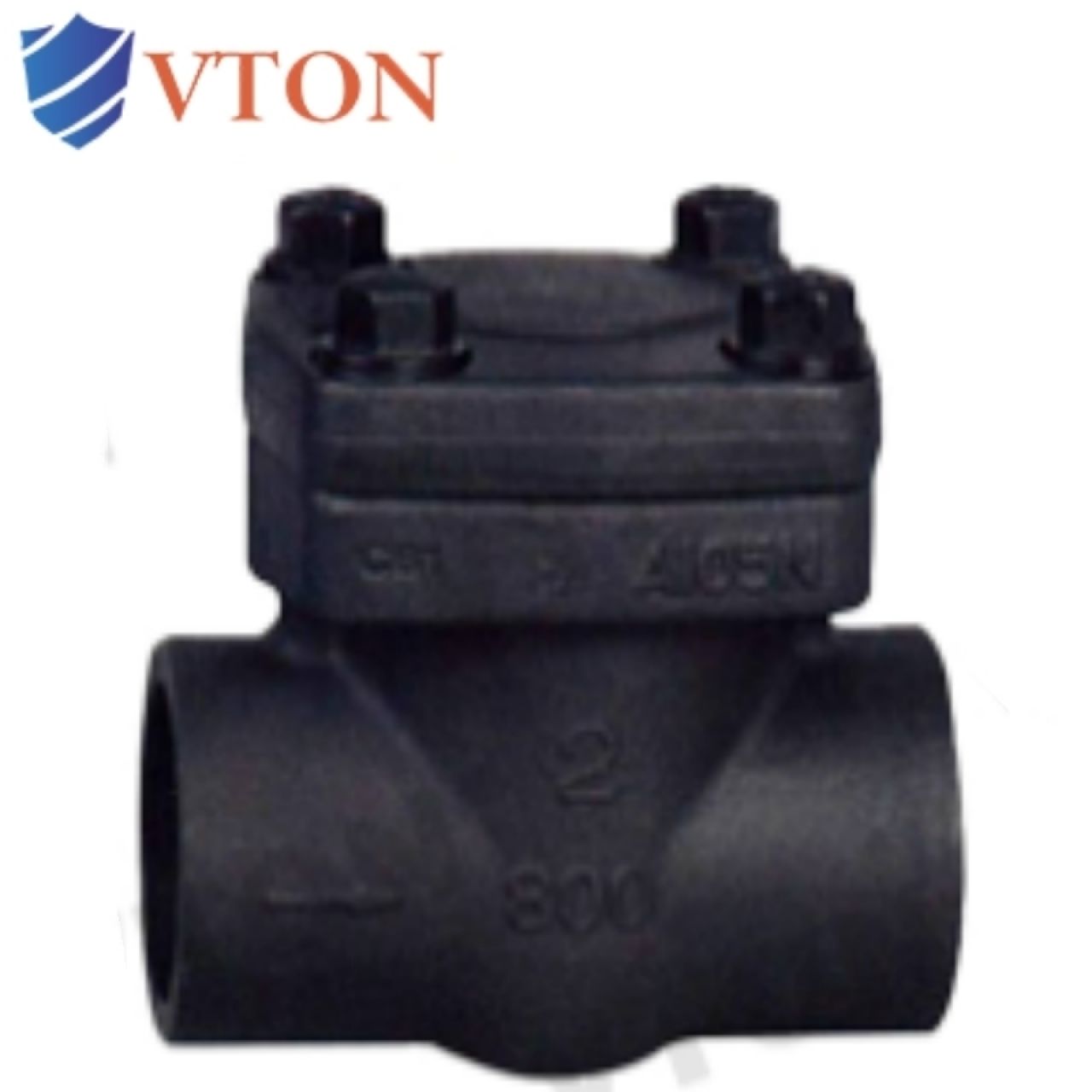

进口螺纹锻钢止回阀

进口螺纹锻钢止回阀

品牌:美国威盾VTON

Brand:VTON

产品系列:止回阀

Product series:Check valve

压力范围:0-100Mpa

Pressurerange:

口径范围:DN3-1000

Caliber range:

减压范围:高压，常压，低压，微压

Repulating range:High pressure, normal pressure, low pressure, micro pressure

阀体材质:铸钢，不锈钢304、316等

Body material:Cast steel,stainless steel304.316.etc

结构形式:旋启式，升降升，单瓣对夹式，蝶形对夹式等

Structure type:Swing type, lifting type, single-flap clamping type, butterfly clamping type, etc

使用介质:水、油、蒸汽、燃气、空气、氢气、氮气等气体，以及各种腐蚀性流体

Using media:Water, oil, steam, gas, air, hydrogen, nitrogen, gases, and various corrosive fluids

主要特征:防止倒流，反向密封性能好，关闭静音，满足各种压力，温度，介质

Main features:Prevent backflow, good reverse sealing performance, silent closing, sui for various pressures, temperatures, and media

产品介绍

一、进口螺纹锻钢止回阀概述

锻钢止回阀有三种阀盖设计形式.第一种是螺栓式阀盖,按这种设计形式设计的阀门,其阀体与阀盖用螺栓螺母连接,缠绕式垫片(316夹柔性石墨制造)密封.客户有特殊要求时也可采用金属环连接.第二种设计形式是焊接式阀盖,按这种设计形式的阀门,其阀体与阀盖用螺纹连接,全焊密封.客户有特殊要求时也可采用透焊连接.第三种是压力自紧式阀盖,按这种设计形式设计的阀门,其阀体与阀盖用螺纹连接,内压自密环密封.止回阀存在三种不同的设计结构,它们是升降式止回阀,球式止回阀和旋启式止回阀。

There are three types of valve cover designs for forged steel check valves. The first type is a bolt type valve cover, and valves designed according to this design form are connected to the valve body and cover with bolts and nuts, and sealed with a spiral wound gasket (made of 316 clamped flexible graphite). When customers have special requirements, metal ring connection can also be used. The second design form is a welded valve cover, and valves designed according to this design form are connected to the valve body and cover with threads and fully welded for sealing. When customers have special requirements, penetration welding connection can also be used. The third type is a pressure self tightening valve cover, and valves designed according to this design form are connected to the valve body and cover with threads and sealed with internal pressure self sealing rings. There are three types of check valves. Different design structures include lift check valves, ball check valves, and swing check valves.

二、进口螺纹锻钢止回阀参数

1、设计结构： MSSP-118和ASME B16.34.检验与测试按API 598,标记按MSS-SP-25.

2、螺栓连接、缠绕垫片密封式阀盖，螺纹连接、全焊密封式阀盖以及螺纹连接内压自紧式阀盖

3、口径：DN10-DN50  1/4-2寸

4、压力：6.4-32   Mpa  150LB-2500LB

5、适用介质：水，油，加压天然气，氮气，氧气，氢气等气体。
