- 品牌：BARDIANI

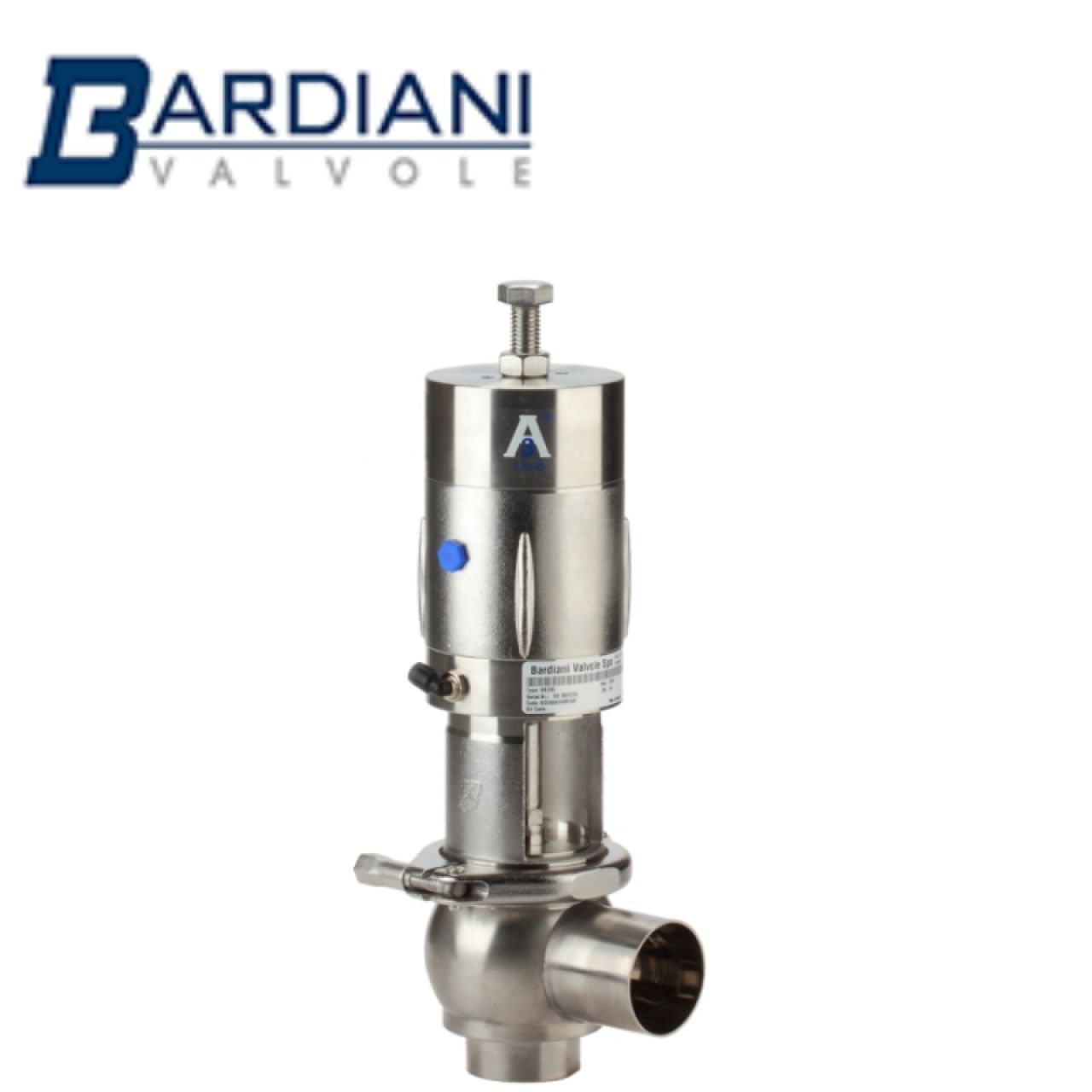

BBZS5单座阀
PNEUMATIC BY-PASS VALVE
CERTIFICATIONS
EHEDG ATEX 3A 53-06
MAIN BENEFIT/USP
Maximum hygiene and reliability (EHEDG and 3A certified)
Sturdiness: valve bodies made from solid bar
Easy maintenance without the need for special tools
Maximum versatility: sui for different applications and products
Maximum safety
DESCRIPTION
BBZS1 and BBZS5 by-pass valves have been designed to be highly versatile. These
valves are sui for different types of application and for diverse industrial sectors.
Regulation of the retained pressure depends on the loading of the spring in the heart of the valve.
This load can be regulated by adjusting ring nut located inside the protective casing on BBZS1.
Or by using the adjustment pin on the top back of the actuator on BBZS5 with
the possibility to facilitate valve washing by opening the actuator with air injection.
STANDARD FEATURES
Connections from DN10 to DN100 (from 1/2” to 4”)
EPDM, FKM, HNBR and PTFE gaskets
Maximum pressure 10 bar
VARIANTS
BBYS5
Pneumatic by-pass valve with steam barrier
BBWS51
Pneumatic by-pass valve with diaphragm
BBZP - BYPASS
Single seat valve with by-pass
OPTIONAL
Parabolic shaft
Sensor and solenoid valve
Lockable
