- 品牌：BARDIANI

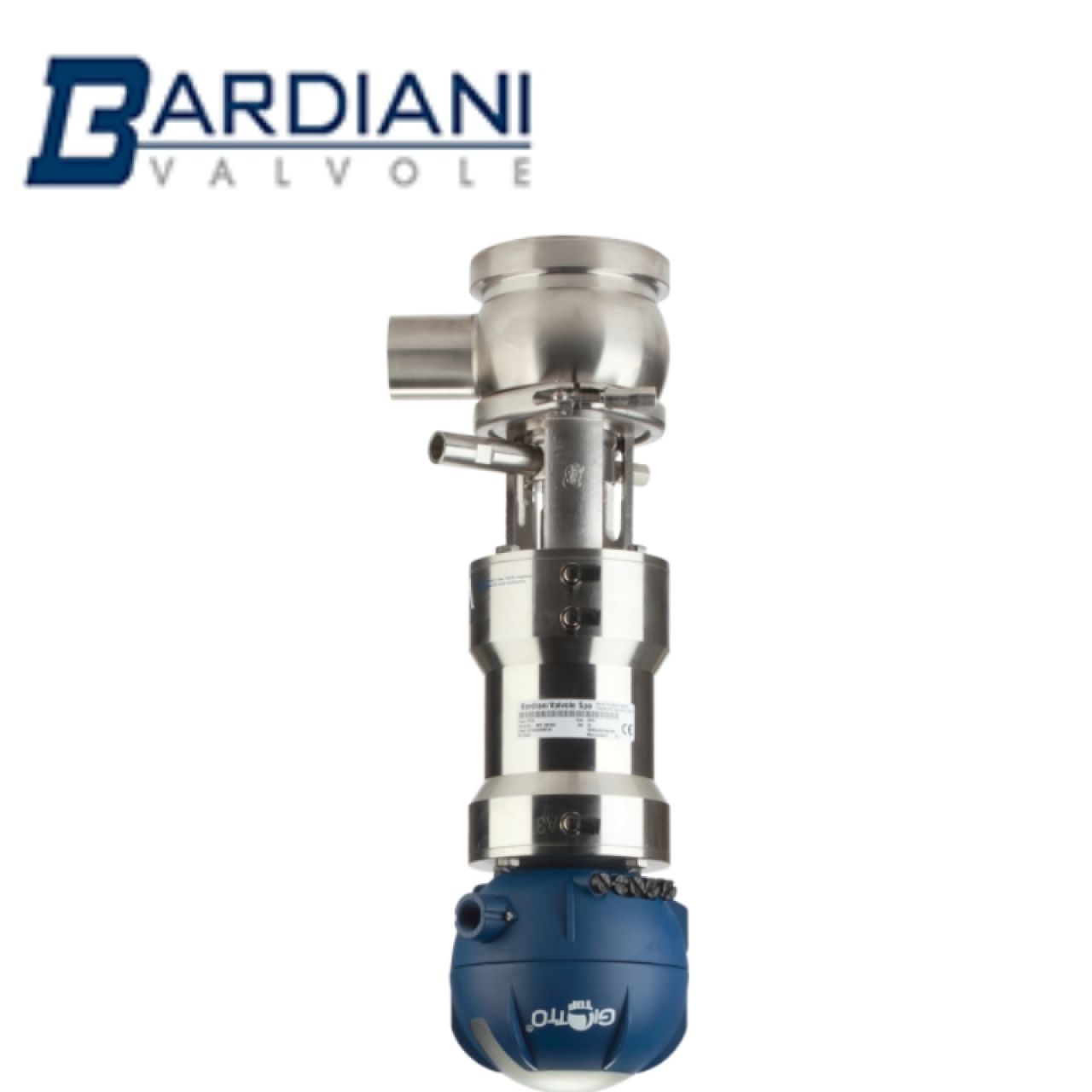

B935双座阀
DOUBLE SEAT TANK-BOTTOM VALVE
CERTIFICATIONS
ATEX 3A 85-03
MAIN BENEFIT/USP
Complete separation between two different products
Maximum versatility for different applications and products
Maximum hygiene (3A certified)
Easy maintenance without the need for special tools
Valve bodies made from solid bar
Balanced valve members made from solid bar
Auxiliary washing system (optional)
Upper and lower lift control (optional)
Serviceable actuator
DESCRIPTION
The B935 is a double seat (mix-proof) valve with an extremely modern and compact design. The valve directs and controls
the flow of two different liquids simultaneously, guaranteeing total separation between the two to avoid any risk of
contamination. Extremely effective in production plants for health-hygiene applications, this valve means a reduction
in the number of single seat valves required and consequently optimizes the use of available installation space. The
valve bodies and balanced valve members, made from solid bar to guarantee higher resistance against water hammer,
the auxiliary washing system (optional) and the detection of any leaks by means of the separation chamber between
the two valve members, makes the B935 one of the safest, most hygienic and reliable valves available.
STANDARD FEATURES
Connections from DN25 to DN150
EPDM, FKM, HNBR gaskets
Maximum pressure 10 bar
VARIANTS
B935V
Double seat tank-bottom valve with steam barrier
